Van Damme 278431000 Purple Series Digilog Super AES LSZH

Van Damme Super Purple Series provides a Low Smoke Zero Halogen version of the established Van Damme Super Green Series for the installation market. Available as a 1 pair and 4 and 8 pair multicore versions this cable range provides a solution for the extended distance transmission of 96 KHz AES/EBU digital audio – over 150 metres without active equalisation. It is also suitable for long analogue audio runs and any critical balanced data signal that requires low capacitance.

Applications
 Long distance transmission of AES/EBU digital audio signals
 Installation in public buildings, schools and colleges, government premises and marine vessels
 Equipment rack wiring where LSZH materials have been specified
 Any 100 to 110 Ohm balanced data application such as RS422, RS485, DMX512 and timecode
Application Notes
 22AWG conductors for low capacitance and excellent attenuation figures
 Multicore types are foil screened pairs with polyester overwrap to keep the overall diameter to a
minimum – pairs should be sleeved with PVC or heatshrink sleeving when broken out for termination
 Electrically engineered for long distance 96KHz digital audio transmission - 150 metres without
equalisation is well within the cables’ performance
 Fully tested and compliant with the following IEC standards: IEC 60332.1 Fire retardancy of a single
cable; IEC 60754.1 Amount of Halogen Gas Emissions; IEC 60754.2 Degree of acidity of released gases;
IEC 61034.2 Measurement of smoke density
 Ultra-pure oxygen free copper for outstanding sonic integrity
Mechanical Specification
Multicores
Pairs
Conductor 7 x 0.25 mm bare ultra-pure oxygen-free copper
Conductor size 7 x 0.25 mm, 0.34 mm2, AWG 22/7
Insulation Foam skin polyethylene
Insulation diameter 1.75 ± 0.10 mm
Colour Code IEC 189-2 appendix A
Drain wire 7 x 0.16 mm tinned ultra-pure oxygen-free copper
Drain wire size 7 x 0.16 mm, 0.14 mm2, AWG 26/7
Screen 24 μm Aluminium/Polyester Foil > 100% coverage with clear polyester overwrap
Overall Construction
Jacket material SHF-1 LSZH thermoplastic polymer
Colour Red Lilac, RAL 4001
Bend Radius 15 x overall diameter
Operating temperature -35 to +70 ⁰C

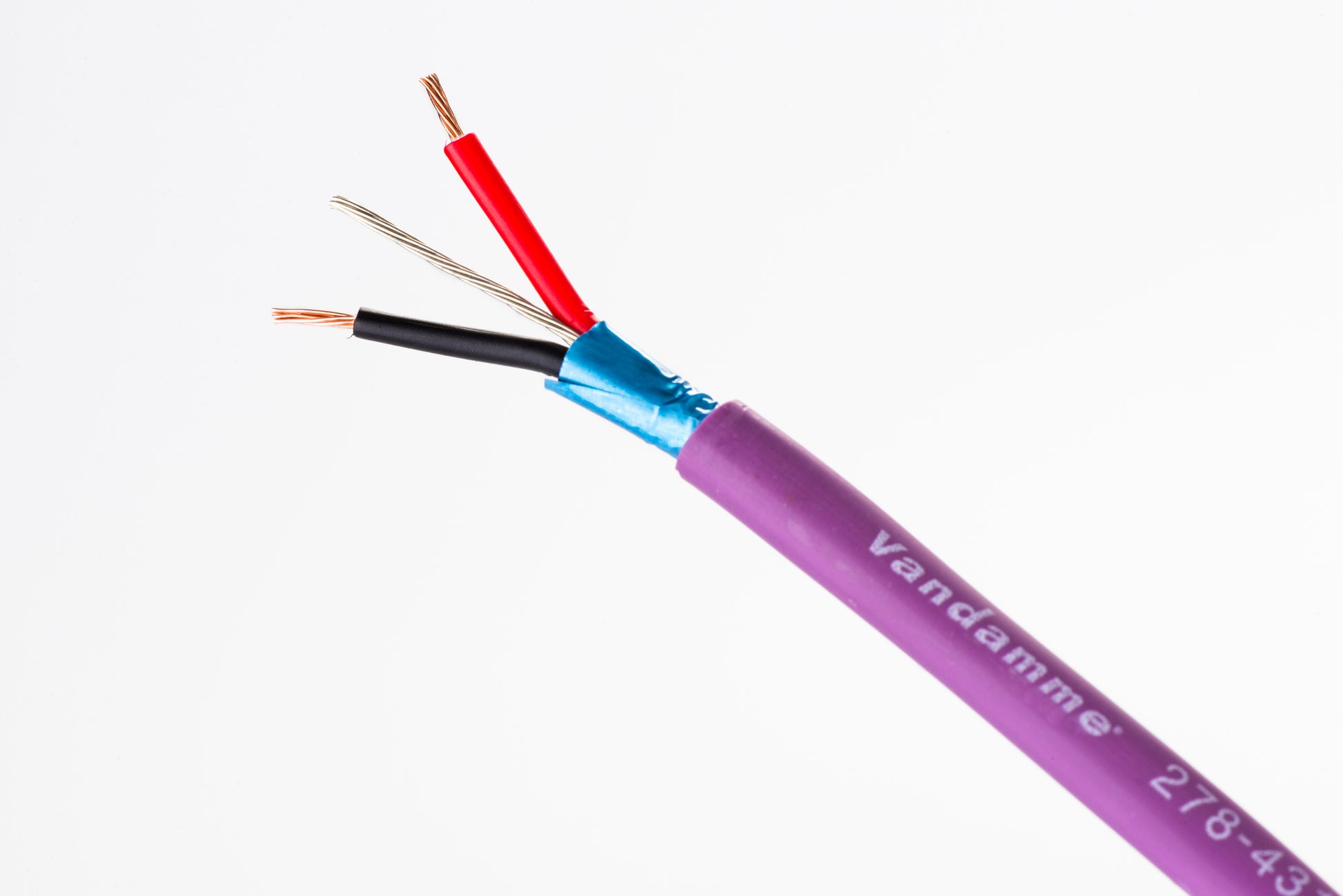

1 Pair
Conductor 7 x 0.25 mm bare ultra-pure oxygen-free copper
Conductor size 7 x 0.25 mm, 0.34 mm2, AWG 22/7
Insulation Foam skin polyethylene, Red/Black
Insulation diameter 1.75 ± 0.10 mm
Drain wire 7 x 0.25 mm tinned ultra-pure oxygen-free copper
Drain wire size 7 x 0.25 mm, 0.34 mm2, AWG 22/7
Screen 24 μm Aluminium/Polyester Foil > 100% coverage
Jacket material SHF-1 LSZH thermoplastic polymer
Overall diameter 4.80 ± 0.15 mm
Colour Red Lilac RAL 4001
Bend radius 15 x overall diameter
Operating temperature -35 to +70 ⁰C
Electrical Specification
Resistance Conductor < 59 Ohm/km
Insulation > 5000 MOhm/km
Capacitance Core to core 50 pF/m
Core to screen 100 pF/m
Impedance 1 -3 MHz 110 ± 20% Ohms
Attenuation 3 MHz 4.90 dB/100 m
