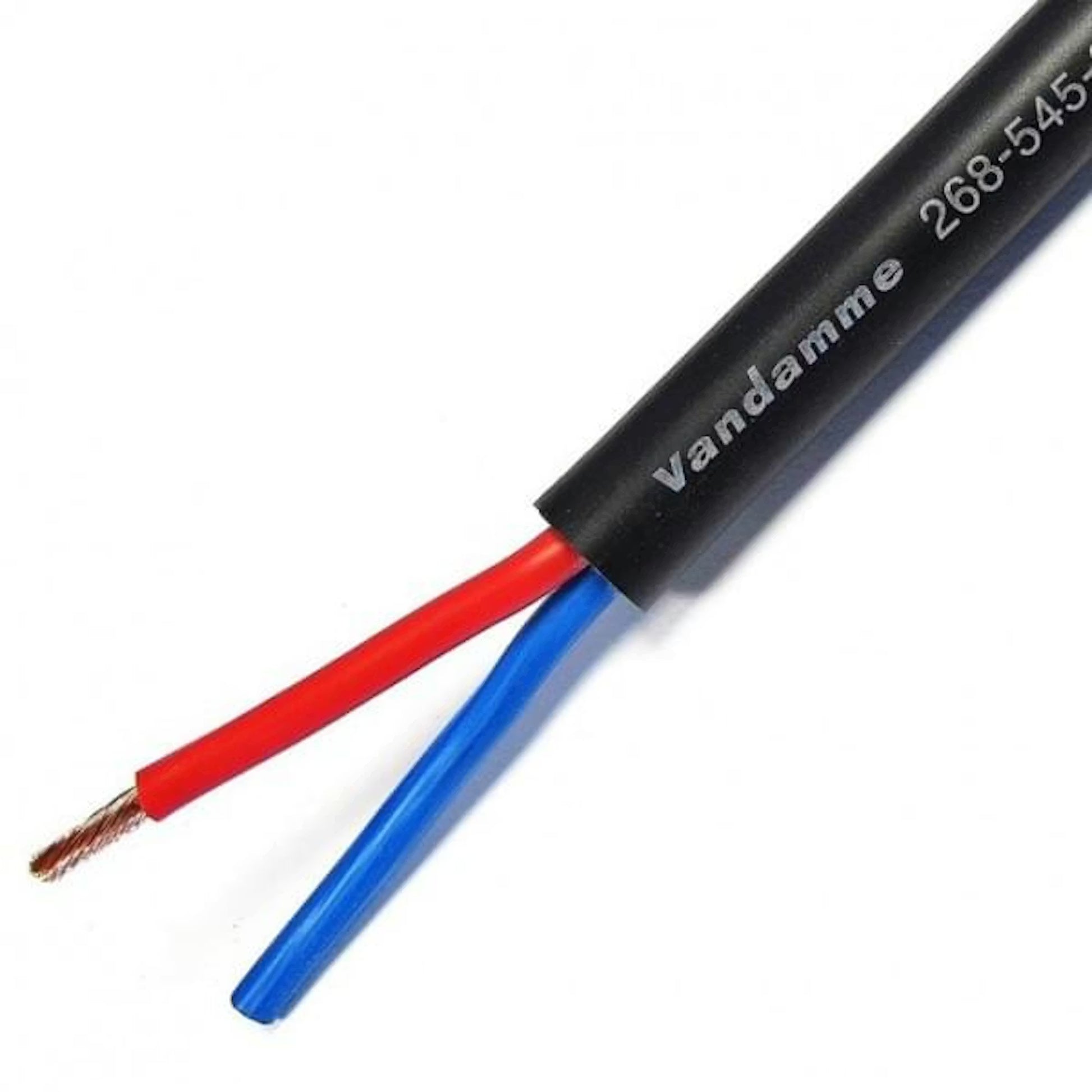

Van Damme Black Series Tour Grade 2 x 4.00mm 2 core twin-ax, per metre

Van Damme Black Series Tour Grade Speaker Cable offers a comprehensive conductor size and core count to accommodate almost all potential speaker signals. From 2 core 1.5mm through 8 core 4mm to 18 core 2.5mm the ultra pure copper conductors, cutting edge PVC compounds and dynamic use focused construction provide accurate signal transmission, toughness and flexibility.

Applications
 Matt black jacket for on stage use
 1.50 mm2 and 2.50 mm2 conductors for lower power applications
 4.00 mm2 and 6.00 mm2 conductors for high power passive speakers and subs
Application Notes
 Wide range of conductor counts & sizes
 Reduced OD 2 x 2.5mm will fit XLR connectors and mono jacks
 Optimised for dynamic use
 Ultra-pure oxygen free copper for outstanding sonic integrity
General Specification
Conductor Bare ultra-pure oxygen free copper
Insulation PVC
Colour code Red/Blue
Jacket Flexible PVC composite Jet Black RAL 9005
Working Voltage 300/500 V
Bend Radius 10 x overall diameter
Operating temperature -20 to +70 ⁰C
Characteristics by part number
Part Number Conductor Overall Stranding Resistance
Size Diameter Ohm/km
268-515-000 1.50 mm2 6.50 mm 30 x 0.25 mm 12.30
268-525-000 2.50 mm2 7.60 mm 50 x 0.25 mm 7.30
268-545-000 4.00 mm2 12.40 mm 50 x 0.30 mm 4.50
268-526-000 6.00 mm2 14.00 mm 84 x 0.30 mm 3.10
