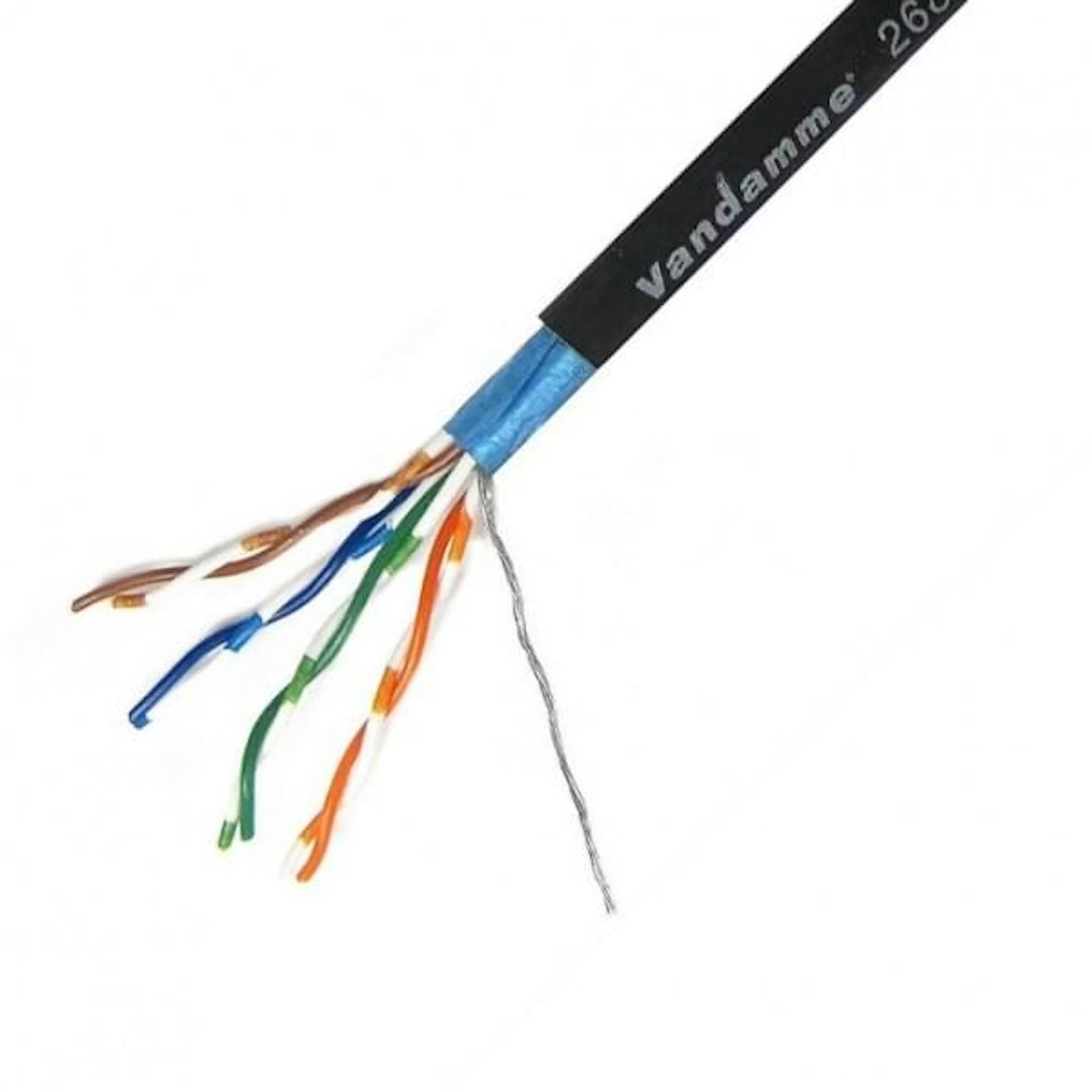

TourCat Cat 5E flexible F/UTP

Conductor 7 x 0.16 mm bare oxygen free copper
Conductor size 7 x 0.16 mm, 0.14 mm2
, AWG 26/7
Dielectric Low Density polyolefin (PE-LD)
Diameter 0.94 ± 0.07 mm
Colour Code Pair 1: White/Blue-Blue, Pair 2: White/Orange-Orange, Pair 3: White/Green-Green,
Pair 4 White/Brown-Brown
Drain wire 7 x 0.16 mm tinned oxygen free copper
Drain wire size 7 x 0.16 mm, 0.14 mm2
, AWG 26/7
Screen Aluminium/Polyester Foil > 100% coverage
Jacket material Flexible PVC Jet Black RAL 9005
Overall diameter 6.00 ± 0.30 mm
Bend radius 10 x overall diameter
Operating Temperature -40 to +70 °C
