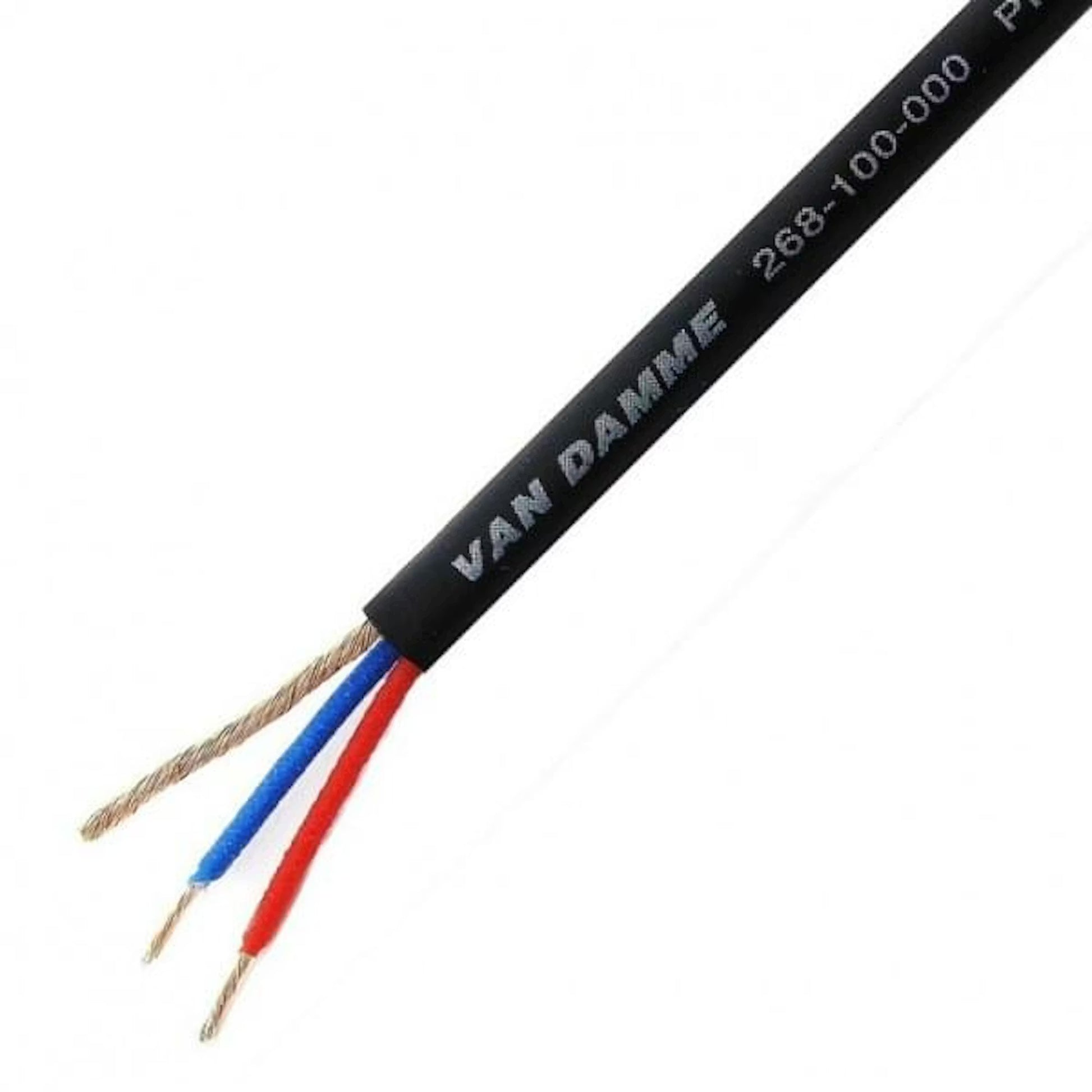

Van Damme 268100000 Pro Grade Classic XKE flexible

Pro Grade Classic XKE flexible

Super Flexible 1 pair is a 3.60mm balanced analogue audio cable with a lapped copper spiral screen. This cable is ideal for use with miniature connectors such as the Switchcraft Tini-Qg range and other small connectors typically found on Lavalier microphones. Its helical spiral shield can withstand multiple flexing operations making it preferable to foil screened 1 pair for certain dynamic applications.

Conductors: 5 x 0.10 mm silver plated ultra-pure oxygen-free copper
14 x 0.10 mm bare ultra-pure oxygen-free copper
Conductor size: 19 x 0.10 mm, 0.15 mm2 , AWG 26/19
Insulation: Cross-linked polyethylene (XLPE)
Insulation diameter: 1.10 ± 0.10 mm
Colour Code: Red/Blue
Screen: 60 x 0.10 mm spiral lapped oxygen free copper wire
Jacket material: Flexible PVC/Neoprene composite
Overall diameter: 3.60 ± 0.15 mm
Colour: Jet Black, RAL 9005
Bend radius: 10 x overall diameter
Operating temperature: -20 to +70 ⁰C

Resistance: Conductor < 130 Ohm/km, Insulation > 5000 MOhm/km
Capacitance: Core to core 47 pF/m, Core to screen 152 pF/m
