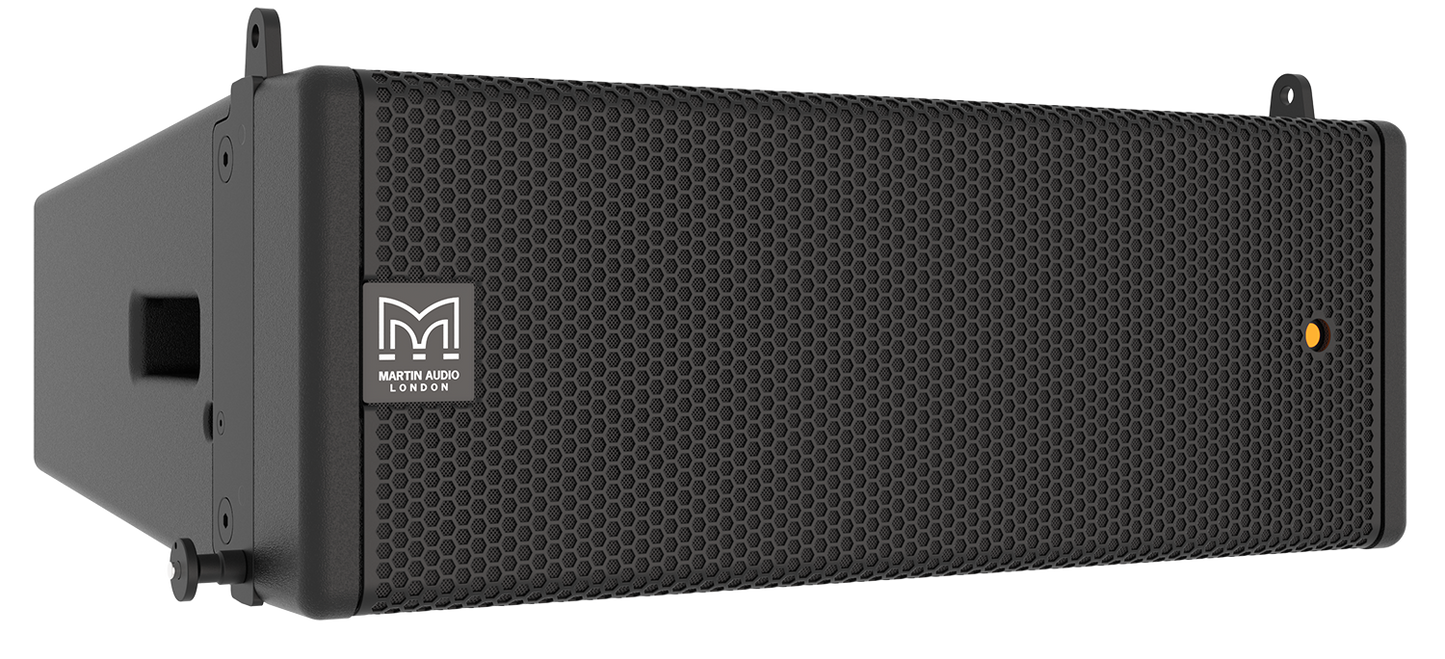

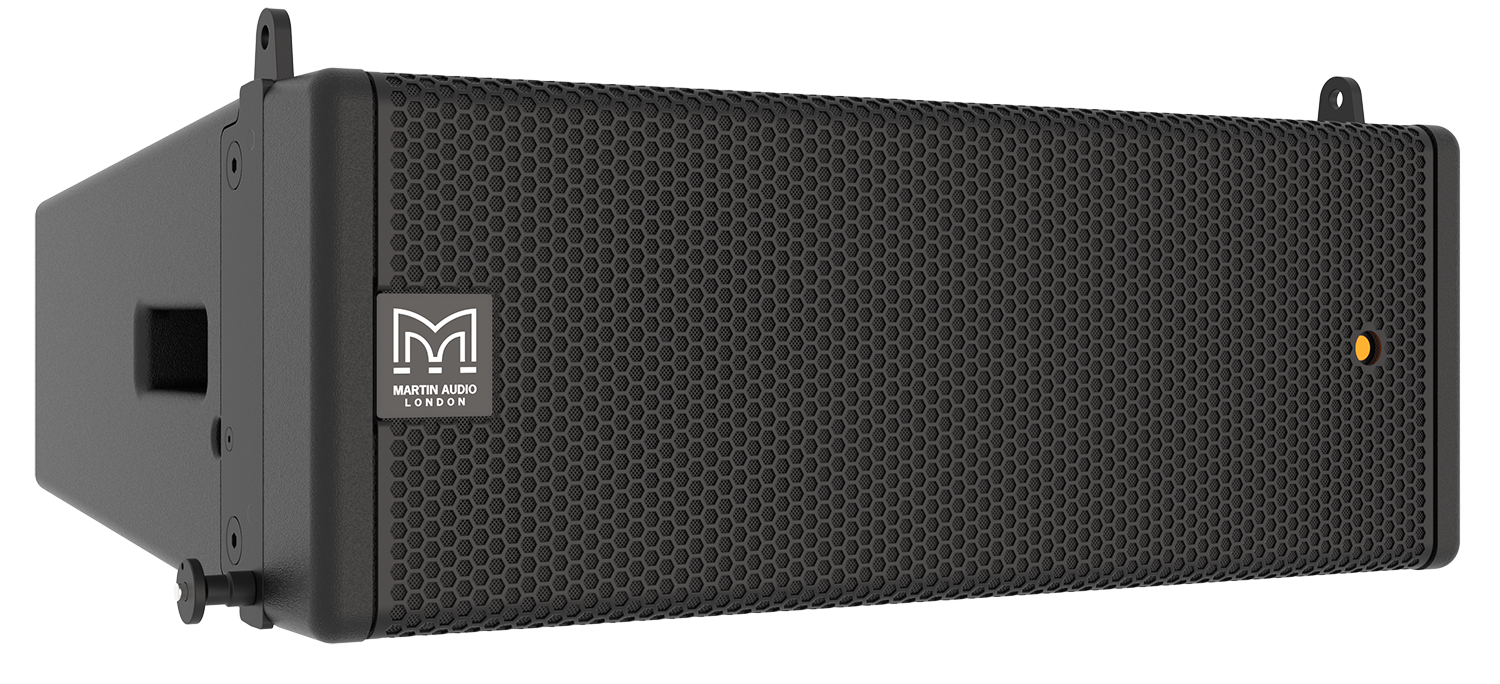

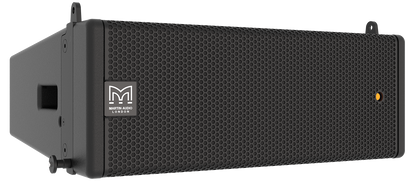

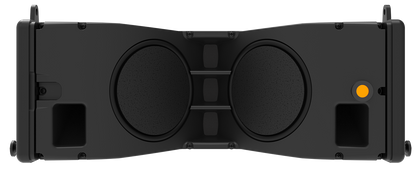

Martin WPM – Ultra-Compact Line Array, Maximum Impact

Features

• 2-way passive, 2 x 6.5” mini line array
• Scalable resolution for advanced array control
• External, dedicated, multi-channel Class D amplification
• Industry-leading DISPLAY software interacts with DSP for highly-accurate results

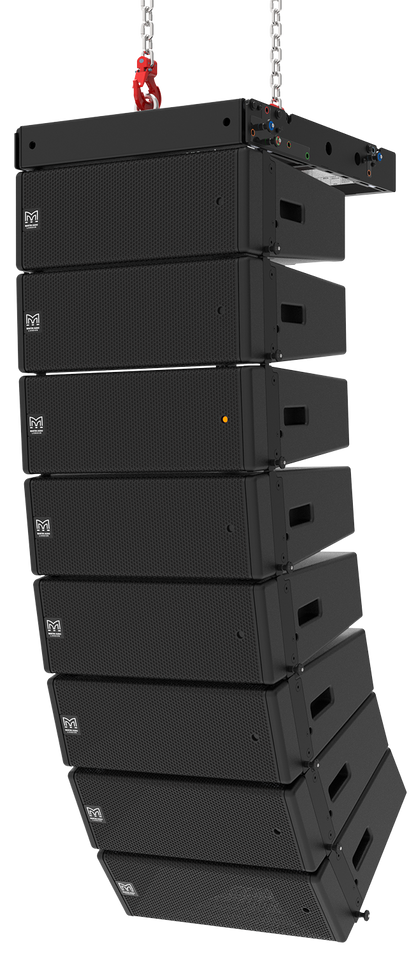

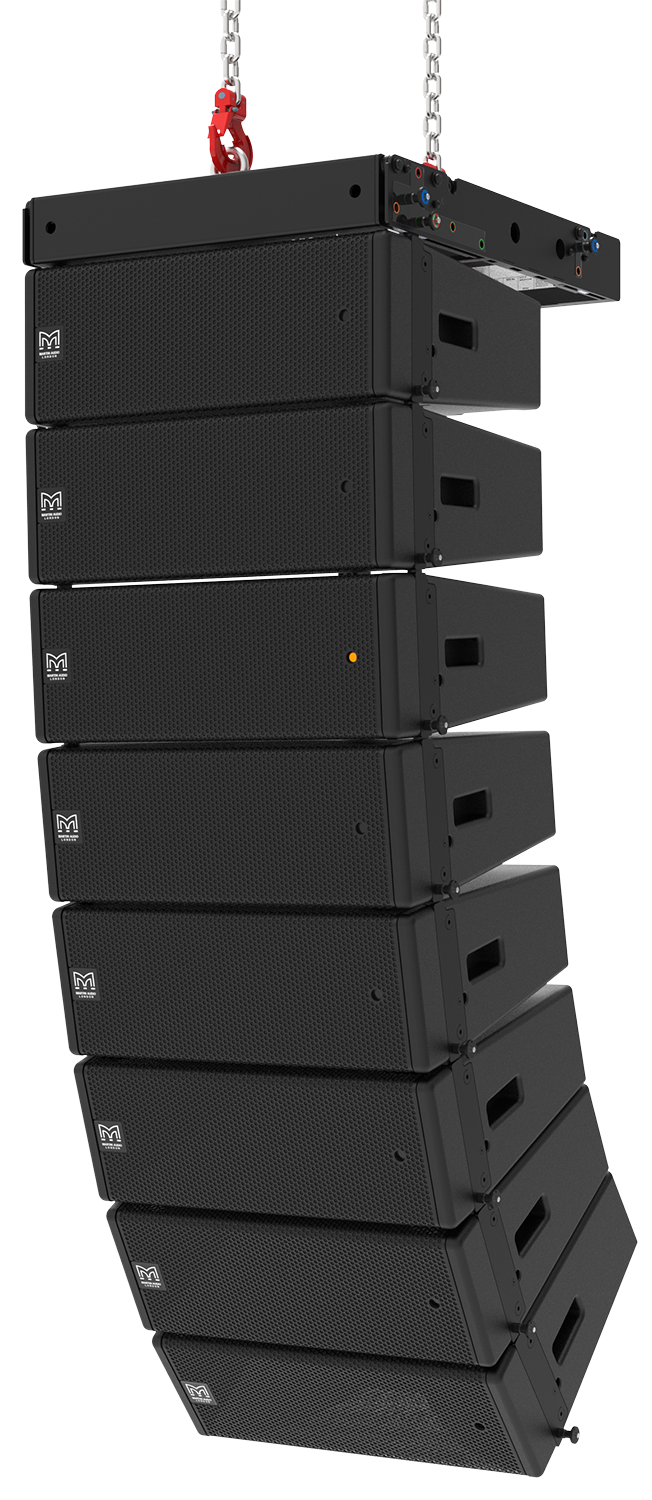

• Fast, integral 3-point flying systems for up to 16 enclosures
• Side and rear handles for ease of handling and setting splay angles
• 100° horizontal constant directivity pattern control

Benefits

• Consistent coverage achieved ‘straight-out-of-the-box’
• DISPLAY intelligent software reduces set-up time and eliminates trial-and-error
• Improved audience coverage with reduced sound-spill

Applications

• Touring sound reinforcement for small and medium-size venues
• Fixed installations in concert halls, theatres, ballrooms and HoW
• Sports stadium, arena installations & corporate AV events

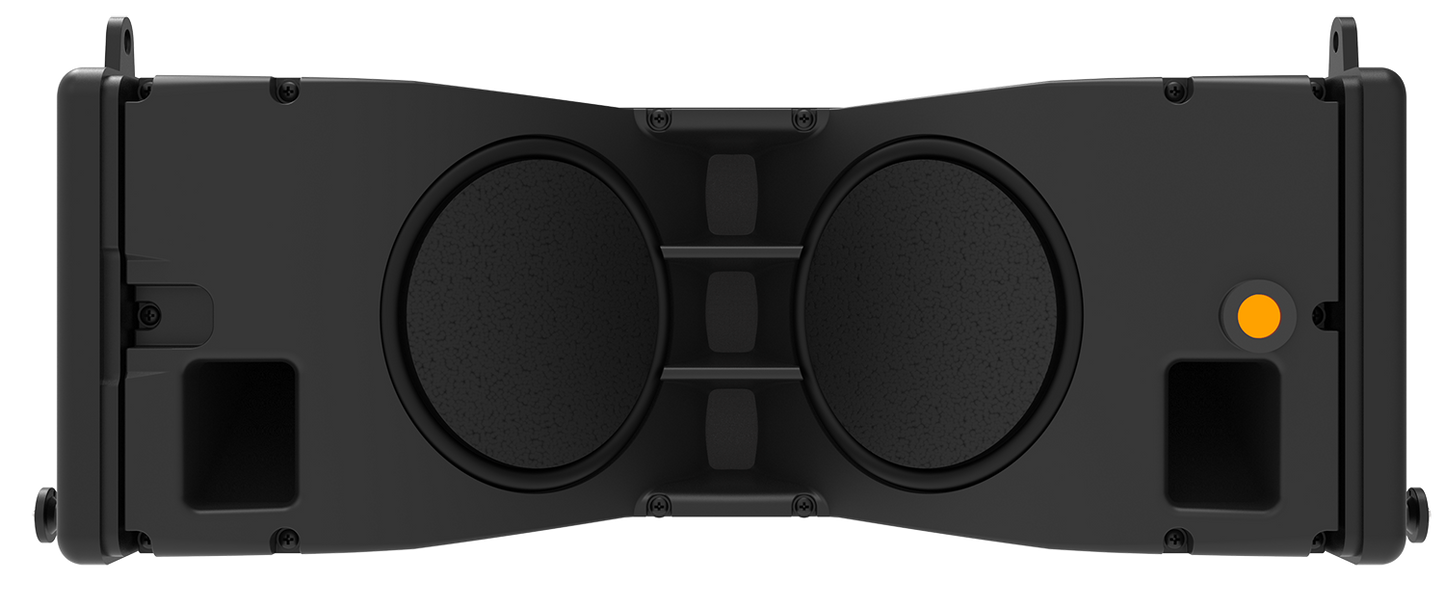

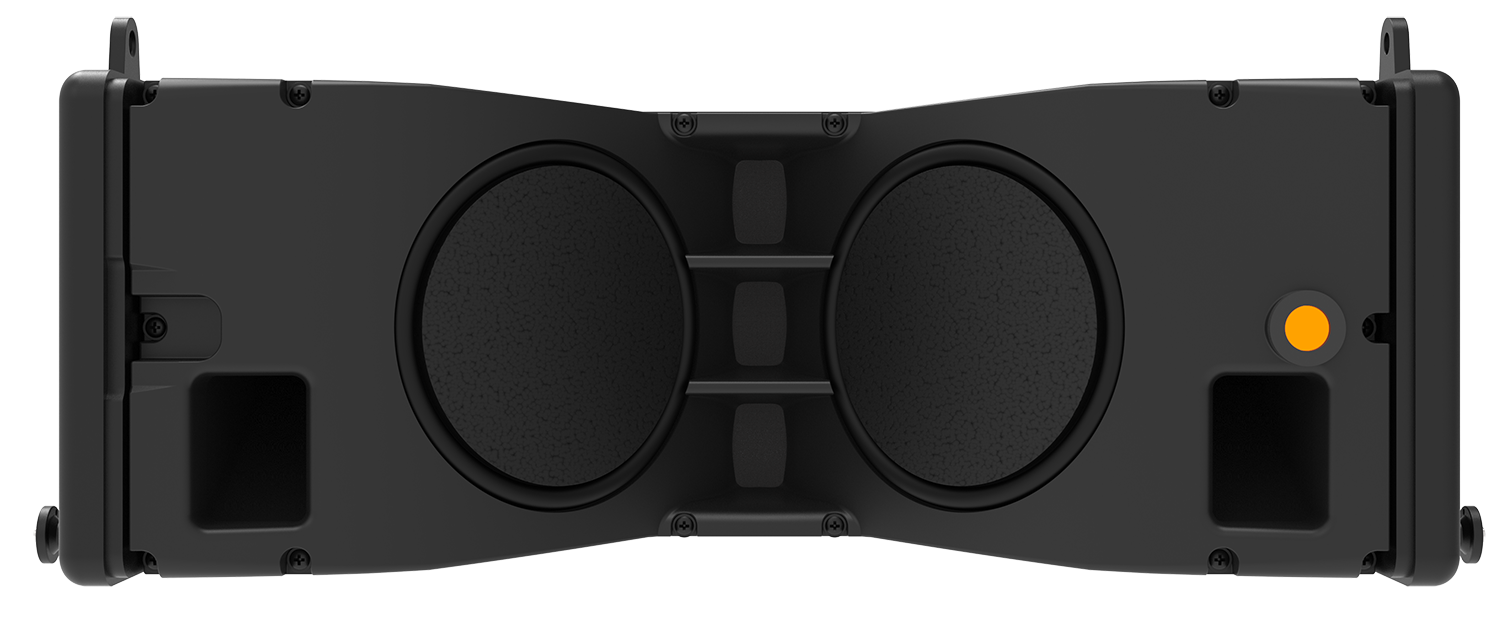

LF Section – Integrated Horn Walls for Maximum Efficiency

• 2 × 6.5” neodymium drivers
• Side-mounted within the HF horn walls to preserve horn continuity
• Moulded diaphragms maintain seamless horn profile, eliminating acoustic cavities
• Demodulation rings in the motor system reduce distortion and enhance mid-band output

This arrangement allows WPM to deliver high-output, controlled low frequencies in a remarkably compact enclosure — a major advantage over conventional cone designs at this size..

HF Section – Precision by Name, Precision by Nature

• 3 × 1.4” aluminium dome drivers
• Each driver coupled to the horn throat via a short waveguide
• Delivers 100° horizontal constant directivity
• Produces clear, detailed, and coherent high frequencies across the coverage area

The result is exceptional intelligibility and uniformity, ensuring that vocals, speech, and instrumentation remain crisp and present even in the tightest spaces.

• IP rating of IP54
• Corrosion resistance
• High heat, cold temperature and humidity protection
• UV stability protection
