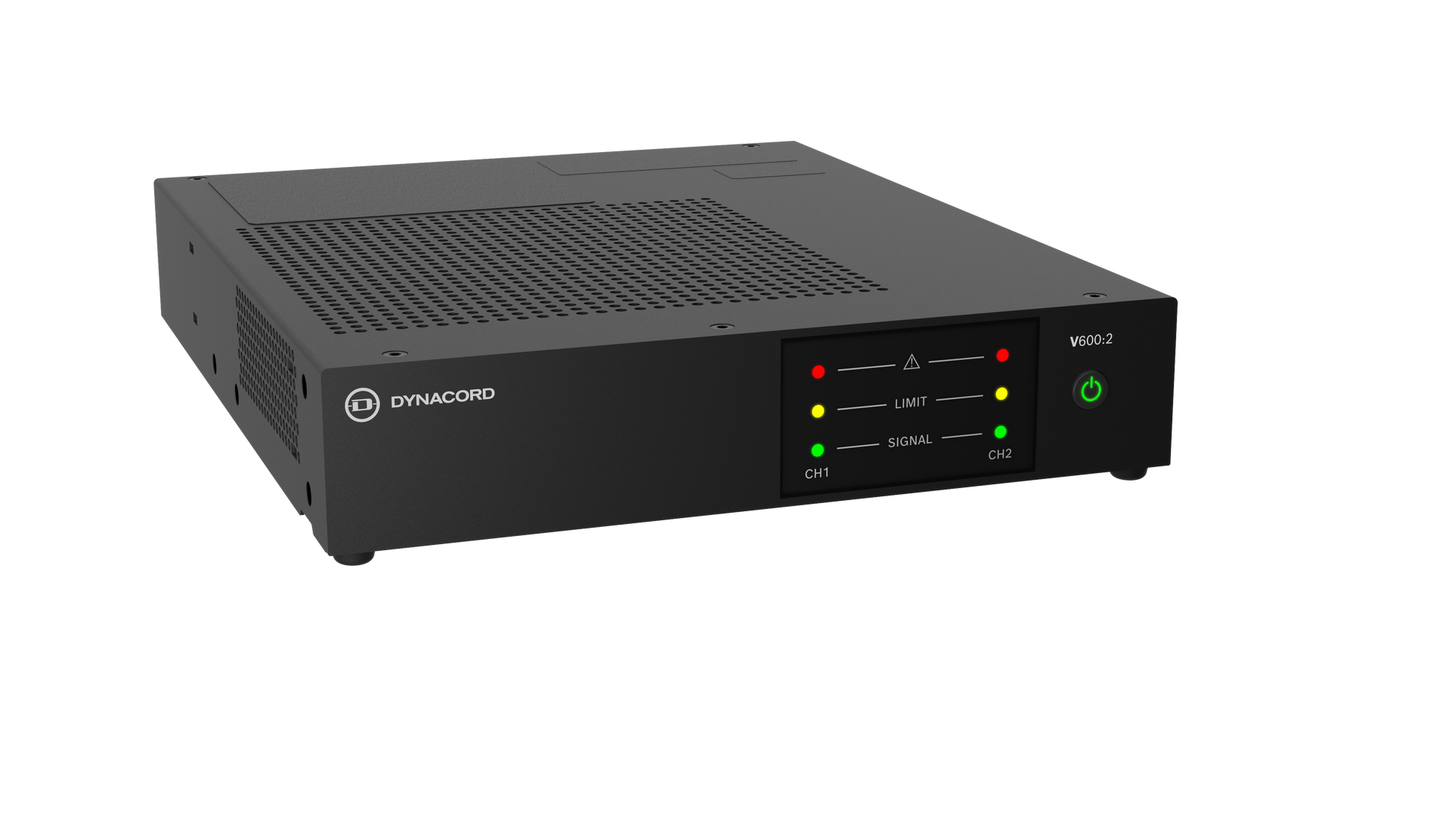

Dynacord V600:2 Power Amplifier 600W

Power Amplifier 600W

• Total rated output power[1]: 600W
• Number of channels: 2
• Rated output power[1]: 2 x 300W
• Output power: 4Ω / 8Ω / 70V / 100V
• Maximum output power per channel (power sharing): 500W / 600W / 500W / 600W
• 4Ω / 8Ω / 70V / 100V
• Nominal Gain:(+6 dBu input sensitivity, LEVEL 0 dB): 27.0 dB / 30.0 dB / 33.2 dB / 36.2 dB
• Signal to Noise Ratio (A-weighted, ref. to rated output power, LEVEL 0 dB): > -100 dB / > 102 dB / > 101 dB / > 103 dB
• THD+N (1/8 RATED OUTPUT POWER, 1 KHZ): < 0.1%
• Type: 1 x 6-pin Euroblock, 3.81 mm, male, parallel 1x RJ45 (AES72-1E)
• Loudspeaker output: 2 x 4-pin Euroblock, 5.08 mm, female
• Control port type: 1 x 5-pin Euroblock, 3.81 mm, male
• Input Routing, Filter (24 dB/Oct.), Hi-pass 30/50/100/150 Hz, Lo-pass 150 Hz, Peak Limiter
• Audio limiters, high temperature, DC, HF, short circuit, back-EMF, peak current limiters, inrush current limiters, mains over/under voltage protection
