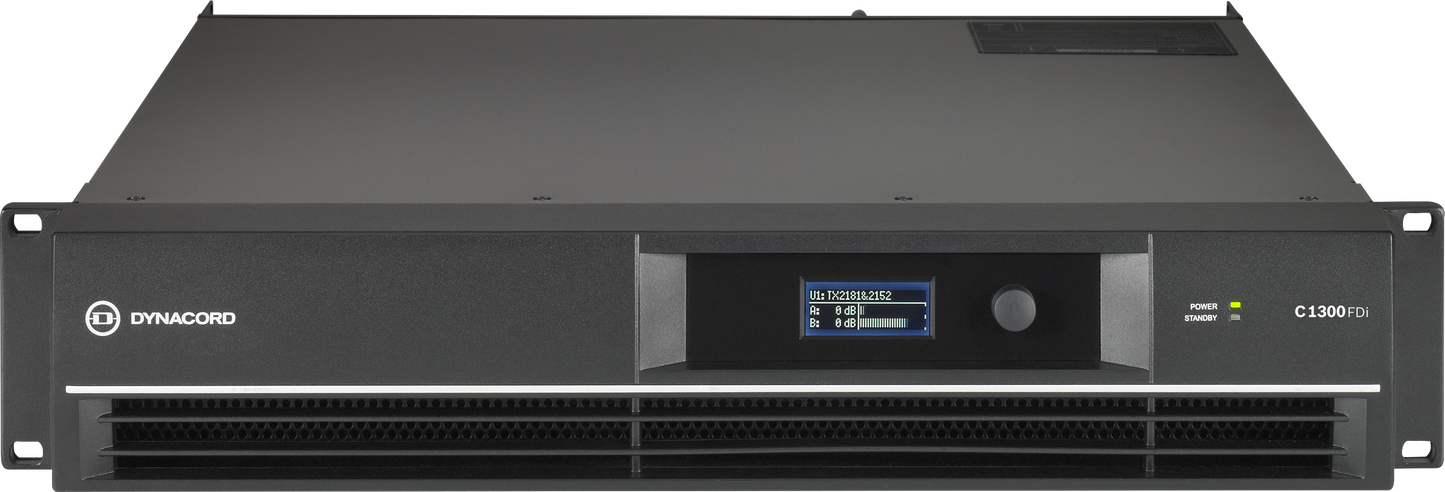

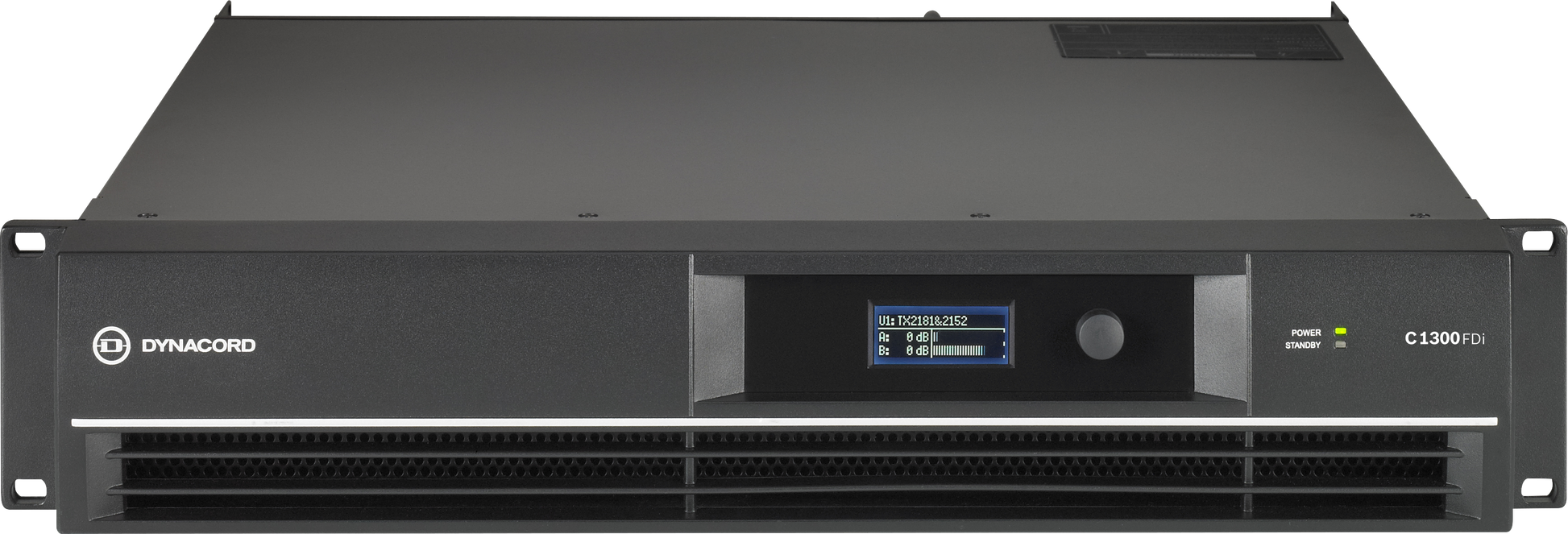

Dynacord C1300FDI DSP 2 x 650 w power amplifier

Dynacord C1300FDI DSP 2 x 650 w power amplifier

495,000.00 AMD
495,000.00 AMD
Sale Sold out
Taxes included.

2 in stock

DSP 2 x 650 w power amplifier for fixed install applications

Load Impedance 2 Ω 2.6 Ω 4 Ω 8 Ω
Maximum Output Power, Single Channel 1100 W 950 W 660 W 350 W
Maximum Output Power, Dual Channel 1000 W 850 W 600 W 320 W
Maximum Output Power, Bridged - - 2000 W 1200 W
Maximum RMS Voltage Swing
THD = 1%, 1 kHz		 55.3 V
Voltage Gain Ref.1 kHz 32.0 dB
THD at 450 W/4Ω MBW = 80 kHz, 1kHz < 0.05%
IMD-SMPTE, 60 Hz, 7 kHz < 0.1%
DIM30, 3.15 kHz, 15 kHz < 0.05%
Maximum Input Level +21 dBu
Crosstalk ref. 1 kHz, at 100W/4 Ω < -80 dB
Frequency Response, ref. 1 kHz 10 Hz to 21 kHz (±1 dB)
Input Impedance, Active Balanced 20 k Ω
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8  Ω >104 dB
Output Noise, A-weighted < -68 dBu
Output Stage Topology Class AB
Power Requirements 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption ⅛ Maximum Output Power @ 4 Ω 550 W
Mains Fuse 240 V/230 V: T10AH; 120 V/100 V: T20AH
Protection Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
Cooling Front-to-rear, 3-stage-fans
Ambient Temperature Limits +5°C to +40°C (40°F to +105°F)
Safety Class I
Color Black
Dimensions (W x H x D), mm 483 x 88 x 462.4
Weight 12.9 kg (28.4 lb)
