Canare L-2.5CHWS 75Ohm Coaxial Cable

Canare L-2.5CHWS 75Ohm Coaxial Cable

1,050.00 AMD
1,050.00 AMD
1,050.00 AMD/m
Sale Sold out
Taxes included.

200 in stock

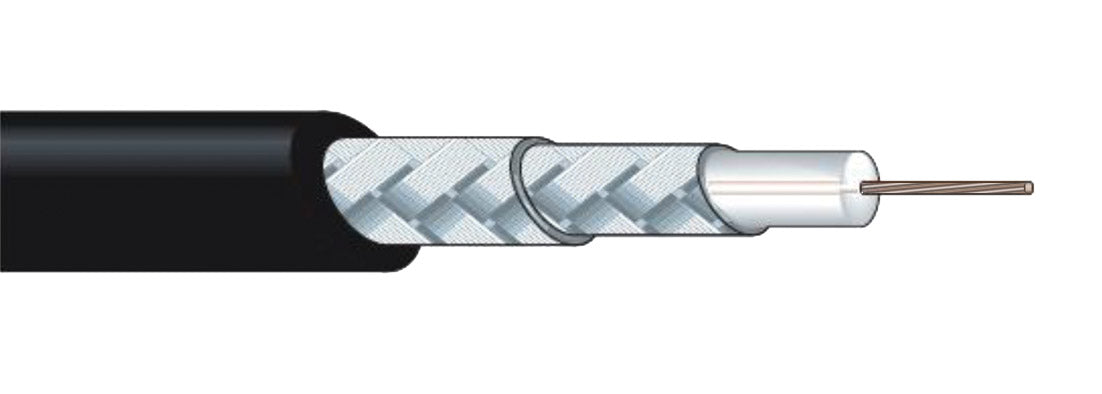

Flexible and durable coaxial cable, suitable for mobile HD and UHD applications. Designed to withstand repeated bending, it has a stranded centre conductor, with a high-density, double-braided shield and high density foam dielectric insulation.



Cable size group: Not in Canford scheme
Inner conductor: 7/0.2mm (0.6mm O.D. 24AWG)
Dielectric: High density foam, 2.6mm O.D.
Screen 1: 0.10mm/8/16, coverage 95% or more
Screen 2: 0.10mm/9/16, coverage 94% or more
Construction: Coaxial cable
Jacket: PVC, 4.2mm OD.
Impedance: 75 ohms
Capacitance: 53 pF/m
Inner conductor resistance: 8.5 ohms/100m
Screen resistance: 1.0 ohms/100m
Attenuation: MHz 10 30 72 88 135 180
dB/100m 4.00 7.00 10.90 12.10 15.10 17.50
MHz 270 750 1300 1500 3000 6000
dB/100m 21.70 37.40 50.50 54.70 81.00 121.90
